  • 4MM-3200MM CNC Bending Machine

4MM-3200MM CNC Bending Machine

Share:

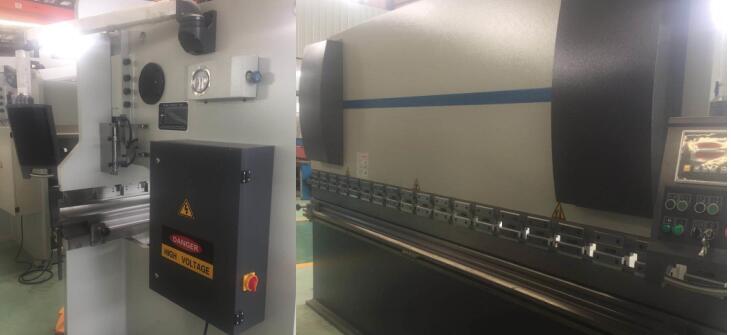

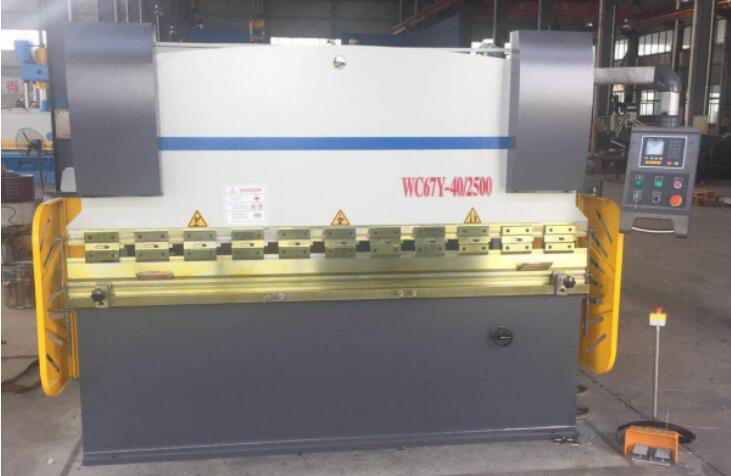

4MM-3200MM CNC Bending Machine


4MM-3200MM CNC Bending Machine


Parameters

1) Max bending thickness: 4mm

2) Length of working table: 3200m

3) Nominal pressure: 1000KN

4) Strength of bending material: 450N/m㎡

5) Ram stroke: 150mm

6) Max open height between table bench and slide block: 405mm

7) Depth of throat: 320mm

8) Speed of slide block: free 50mm/s, work 7mm/s, Return stroke 60mm/s

9) Length of blade: 3300mm

10) Material of blade: China material 9CrSi

11) Height of working table: 700mm

12) Main motor: 7.5kw, 1440rpm

13) Back gauge motor: 0.75kw, 910rpm

14) Pump: 16L/min, 32MPa

15) Max working pressure of hydraulic system: 25MPa

16) Main electrical parts supply by schnider

17) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

18) Machine size: about 3650mmx1650mmx2300mm

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
