  • 4MM-3200MM CNC Cutting Machine

4MM-3200MM CNC Cutting Machine

Share:

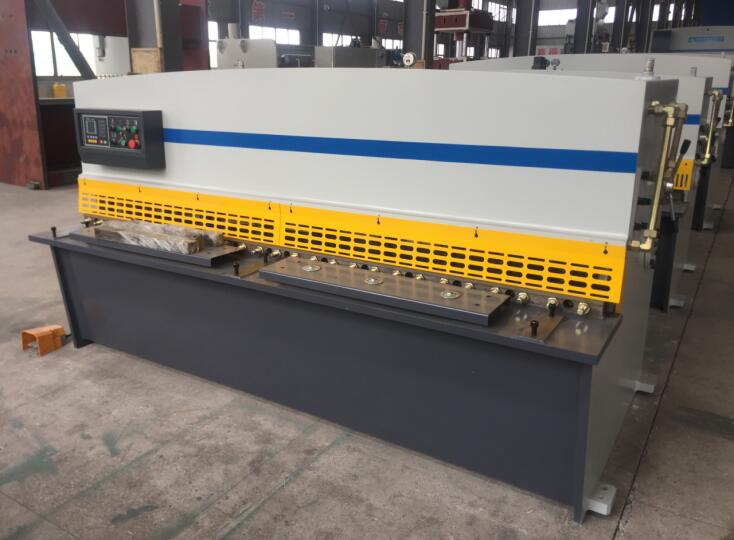

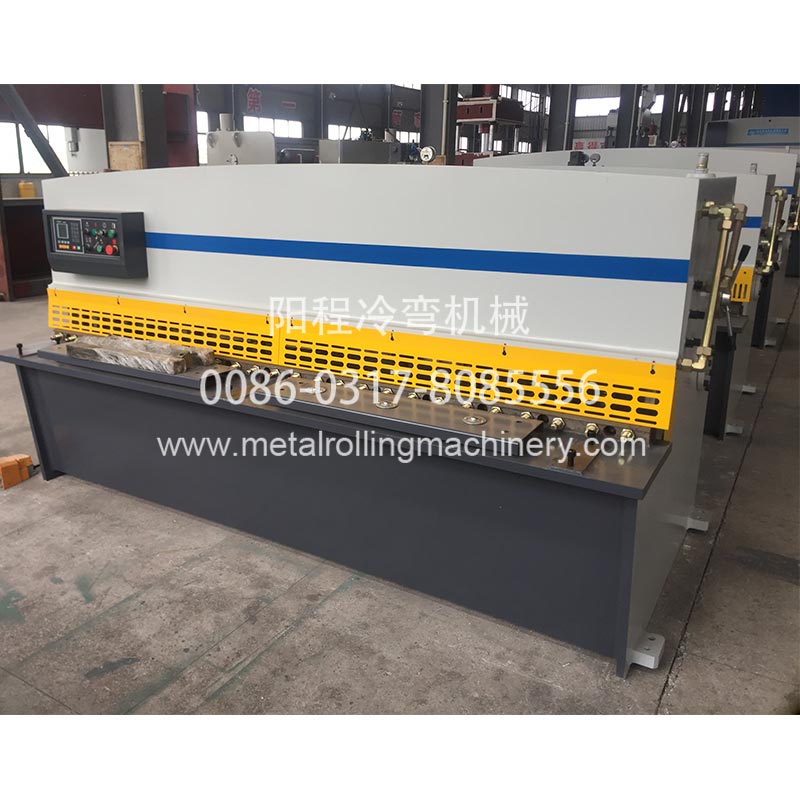

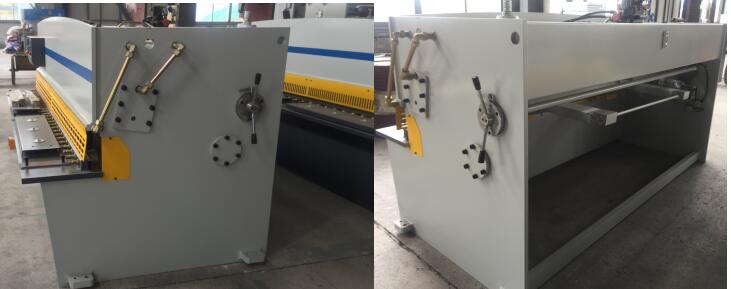

4MM-3200MM CNC Cutting Machine


4MM-3200MM CNC Cutting Machine


Parameters

1) Max cutting thickness: 4mm

2) Max cutting width: 3200m

3) Cutting angle: 1.5°

4) Intensity of sheared material: 450N/m㎡

5) Distance of back gauge: 20-600mm

6) Times of stroke: 12 times

7) Depth of throat: 150mm

8) Distance between vertical columns: 3420mm

9) Length of blade: 3300mm

10) Material of blade: China material 9CrSi

11) Height of working table: 700mm

12) Main motor: 7.5kw, 1440rpm

13) Back gauge motor: 0.75kw, 910rpm

14) Pump: 16L/min, 31.5MPa

15) Main electrical parts supply by schnider

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

17) Machine size: about 4050mmx1750mmx1650mm

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
