YC EPS&Rock Wool Insulated Sandwich Panel Production Line

Share:

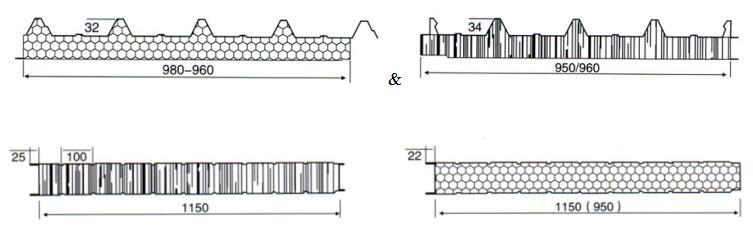

Popular Composite Roof Wall Panels (or design as per your request)

YC EPS


We also can design the machine as per your required profile drawing

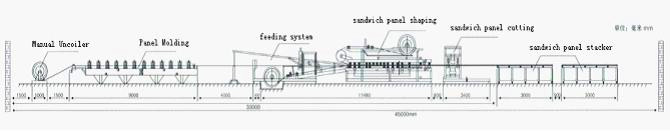

Composite De-coiler(4 sets)—Roll Forming Machine --laminating system ( ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table--Cutting machine


YC EPS

(1) Coil material: EPS&Rock Wool

(2) Thickness of metal plate : 0.3-0.7mm

(3) Sandwich panel thickness: 50-250mm

(4) Production capacity(according to your glue ): usually it is 600000㎡/year

6-10m/min (the fastest) , 3-6m/min(the slowest)

(5) Total power: about 34kw

(6) Weight: about 28ton

(7) Taiwan Delta PLC control system, easy to operate, high precision and work stably.

(8) Dimensions of whole production line:

about Length42000mm × Width2600mm × Height2800mm

Decoiler, Metal Sheet Roll Forming Machine, Feeding Device for EPS&Rock Wool, Main machine for compositing panel, Automatic Control System, Automatic Gluing Device, Automatic Cutting Device, Composite Panel Receiving Table,

Lap Covering Machine, Slitting Machine, Edge Banding Machine

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
