YC 914-75 Steel Floor Deck Roll Forming Machine

Share:

YC 914-75 Steel Floor Deck Roll Forming Machine


We also can design the machine according to your required profile

YC 914-75 Steel Floor Deck Roll Forming Machine

YC 914-75 Steel Floor Deck Roll Forming Machine

1) Processing material: galvanized steel/colored steel coil

2) Material thickness: 0.7-1.2mm

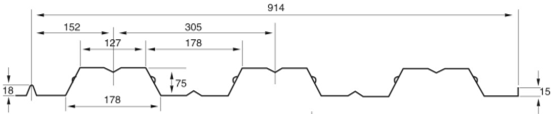

3) Effective width: 914mm

4) Feeding width: 1250mm

5) Main motor power: 15kw+15kw

6) Pump power: 5.5kw

7) Roller Stations: 26 stands

8) Productivity: 0-12m/min

9) Roller material: bearing steel, with hard chrome plating

10) Shaft material: high grade NO.45 carbon wrought steel

11) Shaft diameter: 90mm

12) Cutting blade material: Cr12 mould steel with quenched treatment

13) Main frame: 450H Steel

14) Transmission Type: chain

15) Control system: Taiwan Delta PLC computer control system

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

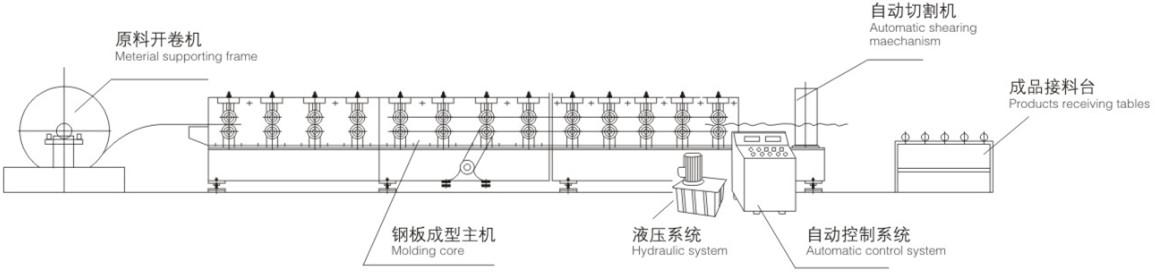

Manual decoiler→feeding device→main roll forming machine→cutting system→output table, two 15kw electric motors, hydraulic station with 5.5kw electric motor, PLC control system

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
