Customized Door Shutter Forming Machine, 2 Shape in 1 machine


1) Processing material: steel   strip

2) Material   thickness: 0.5mm-1.2mm

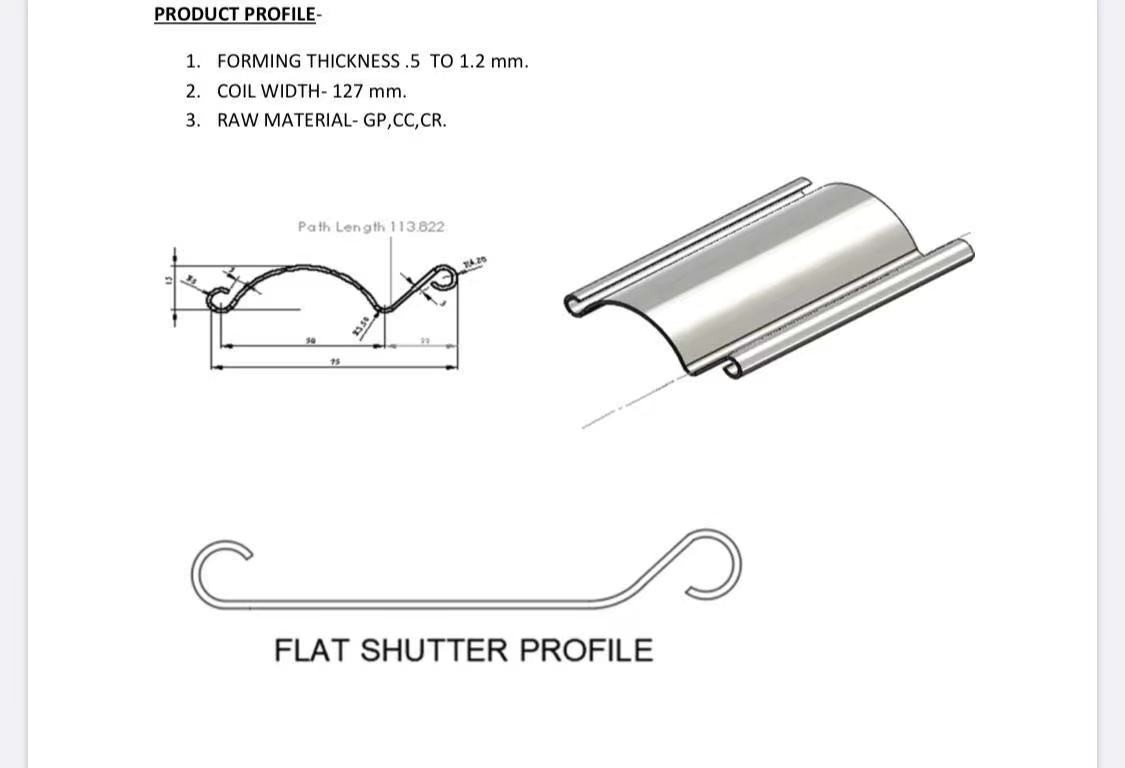

3) Formed sizes   on the machine: as per profile drawings above ;Coil width:127mm

4) Main motor   power: 5.5kw

5) Pump power: 4kw

6)   Productivity: 10-15m/min

7) Roller   stations: 12 steps, Sidewall thickness:20mm

8) Roller material: Cr12 steel with vacuum heat treatment HRC57°-60°

9) Active shaft material: 45#steel with hardened   process.

10) Shaft   diameter: Ф50mm,

11) Cutting system: hydraulic cutting, automatic cut to any length  that  you   need

12)   Cutting blade material: Cr12

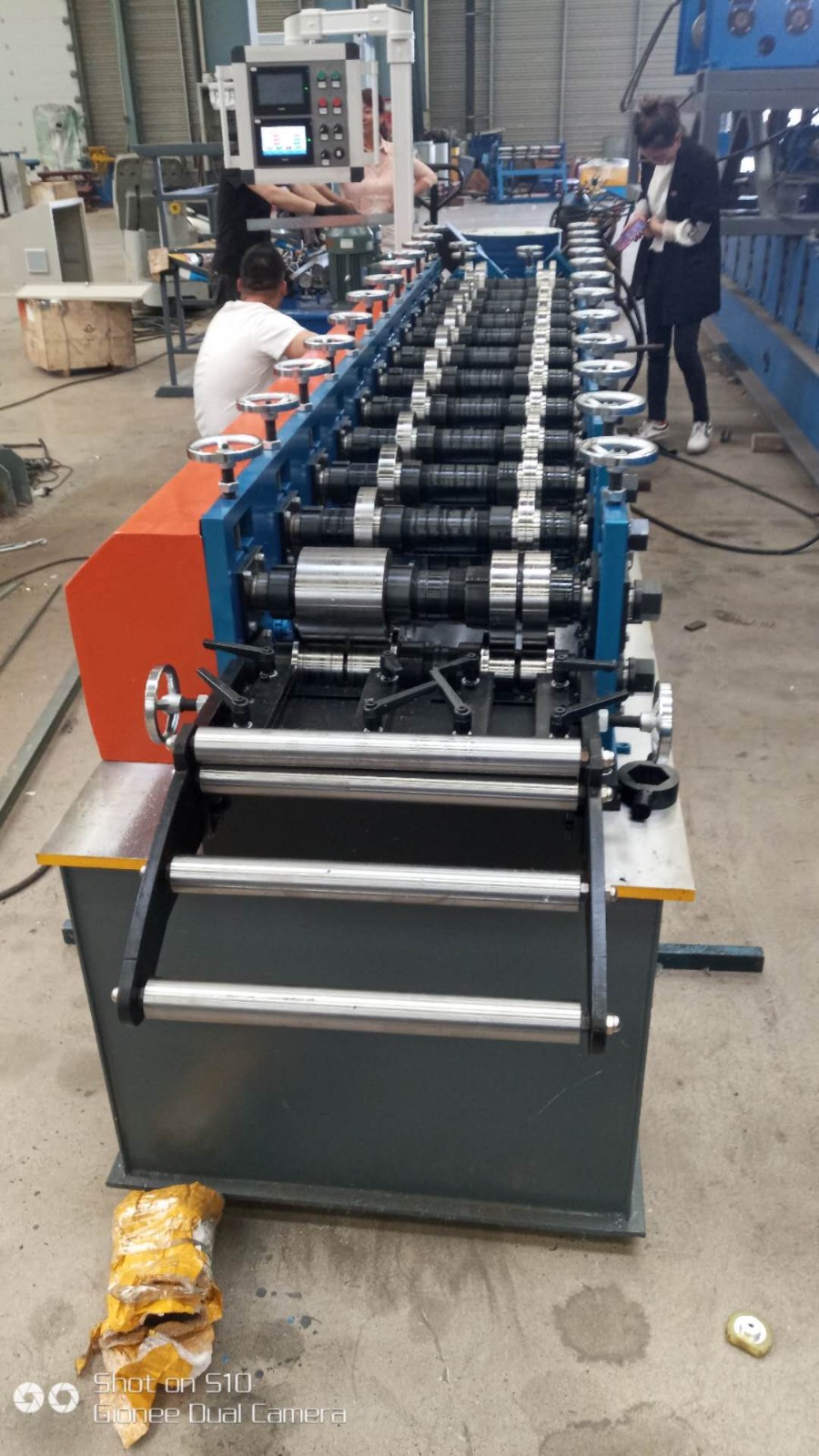

13)   Machine construction:   as per machine photos

14) Transmission type: gear

15)   Control system: Taiwan Delta PLC computer control system with inveter, Touch   Screen in Both English and Chinese Language. Length measurement: Encoder

16)   Power supply: 380V, 3 Phase, 50Hz(or as per your request), Motor   device:Under the frame

17)Frequency converter: It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial standard ±3mm).

17) Main   Machine Dimension(L*W*H): 4m*1m*1.500    Weight: About 2.5T

shutter rolling machine, shutter patti machine, automatic shutter patti machine, rolling shutter machine, automatic rolling shutter machine, plc control automatic shutter rolling machine, hydrolic cutting shutter patti machine, roll forming machine, shutter strip making machine, satar pati machine, satar patti making machine, rolling machine, roll forming shutter, PLC AUTOMATIC SHUTTER PATTI MACHINE, SHUTTER PATTI MACHINE, full automatic shutter patti machine

Customized Door Shutter  Forming Machine, 2 Shape in 1 machine

manual decoiler 3Tguiding platformmain roll forming machinehydraulic cutting system2m output table, 5.5kw electric-motor, hydraulic station with 4kw electric motor, PLC control system and spare part set ,Each above material 1 set.

1). Complete   Machine set  included Embossing shuttle profile forming machine,   De-coiler 3T, Guiding Platform, Main forming machine,hydraulic system,   hydraulic cutting ,PLC, Receiving Table and spare part(Included one set of   Hydraulic cutting die for each steel profile)

 The quotations are valid  for 15 days from the date Quoted.

2). Payment   term: 30%TT should be paid as advance deposit, 70%TT before shipment

3). Package:   naked with simple plastic film and loaded in one 20-feet container

4). Delivery   time: 40 working days after receipt of the deposit

5). Guarantee: Within   18 months for core component. If any part of machine breaks, we will supply   it for free. Lifetime support for   machinery.

6). After sales   service

This producing   line is maintained free of charge for 18 months. When the machine is used in   China, we will install and debug the machine for free; if it is used at   abroad, we will send the professional technician to debug. Buyers should take   all the fees for technicians traveling abroad, and pay 100USD\day\person.
